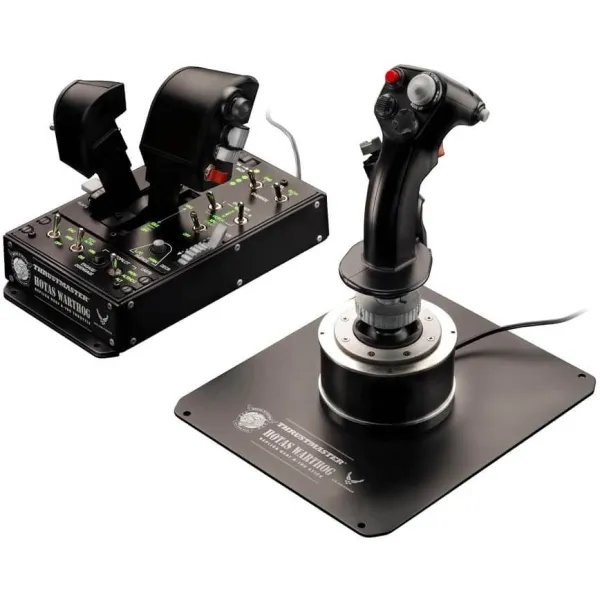

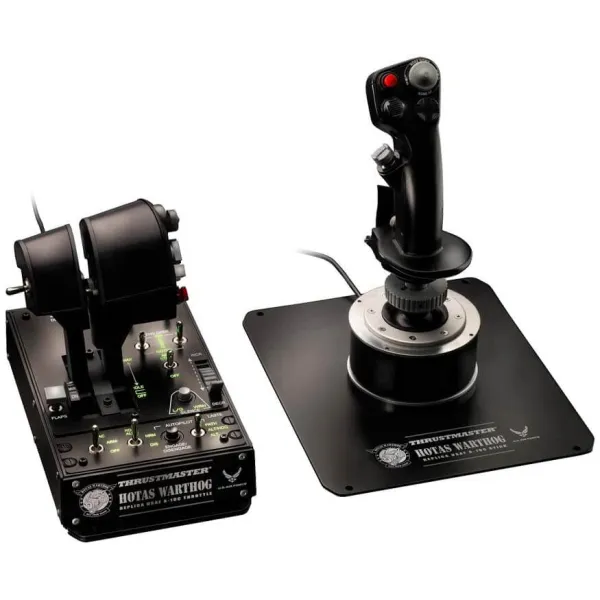

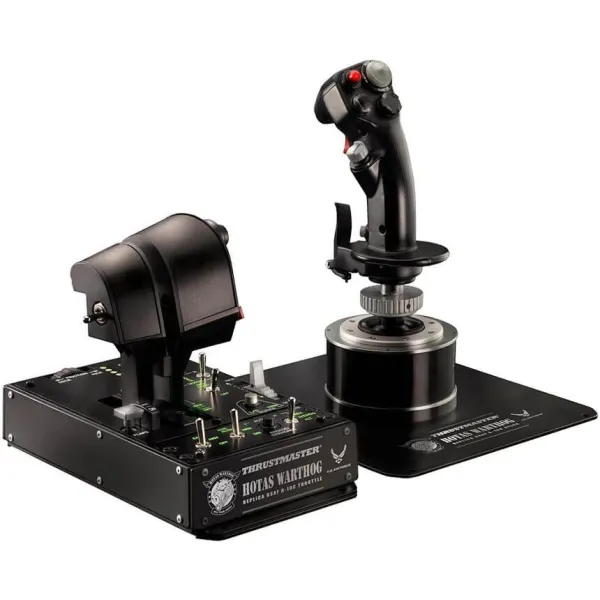

Thrustmaster HOTAS WARTHOG™

The HOTAS WARTHOG joystick and throttle are the result of intense collaboration between Thrustmaster's development teams and members of the simmers community. Discussions and studies were constant throughout the product's genesis, in order to offer a joystick that meets the most exacting and specific requirements of these expert users. The result is a set of replicas of the stick, dual throttle and throttle control panel of the US Air Force A-10C attack aircraft.

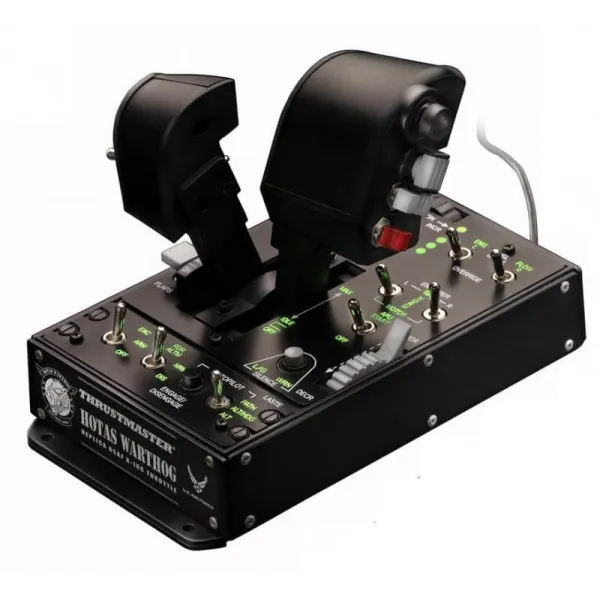

DOUBLE THROTTLE (replicas)

New H.E.A.R.T HallEffect AccuRate Technology(*) :

• 3D magnetic sensors (Hall Effect) on the 2 throttles: surgical precision and durability
• 14-bit resolution (16384 values) on each gas lever

USB connection with upgradable firmware

Dual throttles with :

• metal hand rest
• locking system
• adjustable friction system: firm, linear, fluid tension with no dead zones
• Realistic IDLE with Pull & Push system(*)
• Realistic, disengageable AFTERBURNER with Pull & Push system(*)
• realistic pressure force of buttons and switches
• 17 action buttons in total + 1 mouse hat with push-button + 1 Chinese "point-of-view" 8-way hat :

• 1 x mouse hat with push-button and 3D magnetic sensor (Hall Effect)
• 1 x 8-way hat
• 1 x 4-way hat with push-button
• 1 x push-button
• 1 x 3-position switch (2 momentary + 1 permanent)
• 2 x 3 position switch (3 permanent)
• 1 x 3 position switch (1 momentary + 2 permanent)

1 JOYSTICK (replica)

New H.E.A.R.T Hall Effect AccuRate Technology(*) :

• 3D magnetic sensors (Hall Effect) on the handle: surgical precision and durability
• 16-bit resolution (65536 x 65536 values)
• 5 coil spring system: firm, linear, fluid tension with no dead zones (*)

USB connection with upgradable firmware

Hyper-stable, weighted system (> to 3kg)

New all-metal detachable handle with :

• backwards compatibility with HOTAS COUGAR™ (and vice versa)
• new replica shape
• detachable metal plate for desktop or cockpit use
• new, realistic button and trigger pressure
• 19 action buttons in total + 1 Chinese "viewpoint" cap

8 directions :

• 1 x 8-way "point-of-view" hat
• 2 x 8-way hats
• 1 x 4-way hat with push-button
• 1 x double metal trigger
• 2 x push-buttons
• 2 x small-finger pushbuttons

1 CONTROL PANEL (replica)

Weighted base (> 3 kg) incorporated under gas handles

Function backlighting

5 programmable indicator lights

Realistic pressure force of buttons and switches

15 action buttons in total + 1 TRIM wheel :

• 1 x TRIM wheel
• 2 x push buttons
• 5 x 2-position switches (2 permanent)
• 2 x 3-position switches (1 momentary + 2 permanent)
• 2 x 3 position switches (3 permanent)

1 SOFTWARE SUITE :T.A.R.G.E.T (Thrustmaster Advanced pRogramming Graphical EdiTor).

For testing, configuring and programming controllers

Thrustmaster® controllers: HOTAS WARTHOG™, MFD Cougar, the Hotas

Cougar™ and T.16000M.

Use of the "Drag and Drop" principle.

Several programming levels: Basic, Advanced and Script.

(*) Patent pending.

(**) HOTAS™ is a trademark of Guillemot Corporation S.A..
