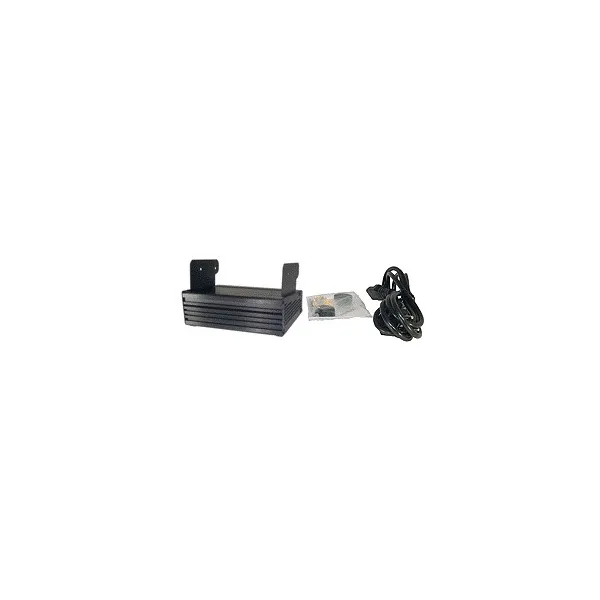

I-COM Power Console 220V

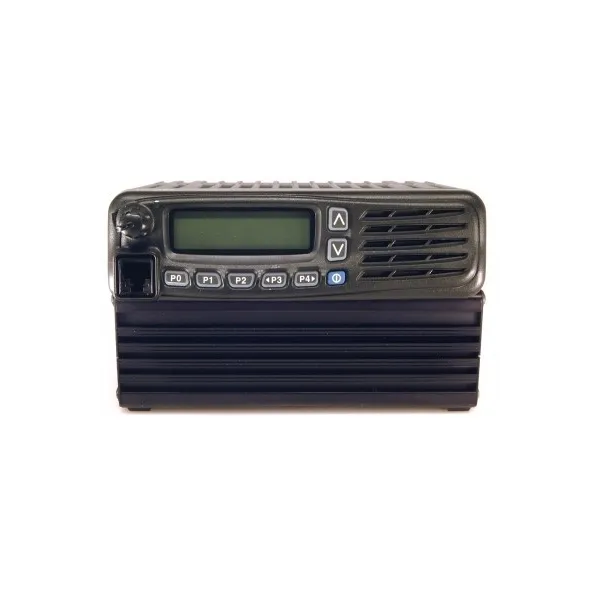

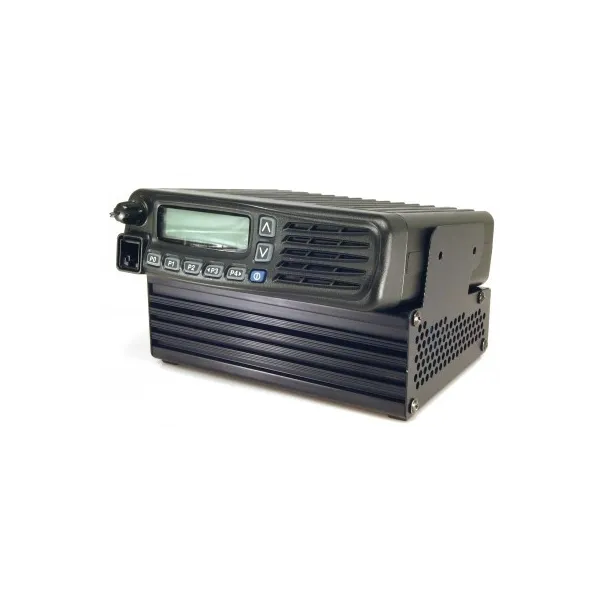

An ideal solution for supplying 12 V DC power to ICOM mobile radios (25 W or 45 W) used as desktop stations.

Operates from an AC power source between 85 and 135 V and between 185 and 265 V without manual adjustment.
-Direct current output of 108 W
-Switching power supply does not generate heat
-Assembled using surface-mounted technology (SMT).
-Compliant with the European Low Voltage Directive, EMC and UL1950 and FCC Class B standards.
-Protected by a sturdy, corrosion-resistant anodized extruded aluminum housing.
Low-mass components are mounted vibration-free.
- SMD technology makes the product compact and easy to install.
Excellent visibility of the cell phone display
-Clip on each side of the radio for attaching the microphone.
-Luminous indicator light to show when the terminal is switched on, enabling early detection of any wiring errors.
-Mains input via standard power cord. Mains input provided by a standard power cord attached to the unit via an EN60 320 C13/14 male and female plug, which also includes an earth pin.
-Radios protected against transient overvoltage, overload and overheating.
-Ventilation system to lower the temperature during prolonged use.
-Modular units can be assembled like bricks and mounted in parallel.

TECHNICAL SPECIFICATIONS
- Power: 108 W
- Input voltages: Autotransfo: 85-135 Vac and 185-265 Vac, 47-440 Hz
- Electrostatic protection: Conforms to ISO10605, ISO14892, >8kV contact, 15kV discharge
- Output voltage: 13.6 Vdc +/-4%
- Output noise: <50 mV pk-pk continuous. CISPR25 standard.
- Conversion efficiency: Approx. 85%
- Insulation
-Between input, output and case: 1.5 kVac rms
- Case to ground: Direct connection to mains earth terminal
- MTBF: >100 years (HRD4)
- Operating temperature: -25°C to +30°C at rated power
+30°C to +70°C with linear load curve from rated value to 0 W
- Storage temperature: -25°C to +100°C
- Max. 70°C at full load at ambient temperature 25°C
- Operating humidity: max. 95%, non-condensing
-Housing: Anodized aluminum

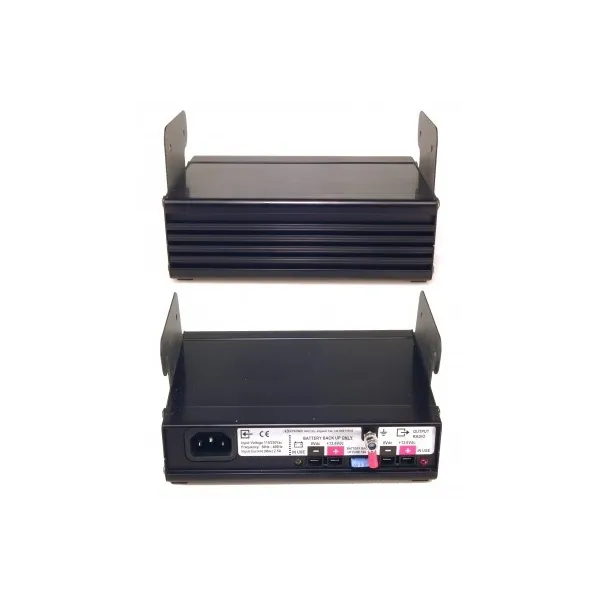

-Connections
-Input: EN60 320 C14 plug, C13 cord terminal
-Output: Plug-in terminals with 6.3 mm blade
-Ground: Plot with curled eyelet adjacent to output
-Output indicator: Red LED adjacent to output sockets
-Mounting: Rubberized studs
-Protections
-Overcurrent: Controlled by current limiter
-Overtemperature: Controlled by thermal sensor
-Overvoltage: Self-contained circuit-breaker
-Transients: By filters and component selection
-Error input connection: Internal input and output fuses
- Approvals: 89/336/EEC General EMC Directive
: 73/23/EEC Low Voltage Directive
: 93/68/EEC EEC Marking Directive
- Tests: According to EN50081-1, EN50082-1, EN55014-1, EN61000-3-3, EN60950,
EN60945 Annex A, IEC60077, UL1950, CSA950-95, FCC Class "B",
VDE0805, CISPR25, ISO10605, ISO14892.
- Marking: CE
- Dimensions: 170 x 120 x 90 mm
- Weight: 750 g (excluding cord)
